Label-free Live Cell Imaging

Label-free live cell imaging using quantitative time-lapse imaging facilitates gentle cell imaging, enabling non-invasive visualization and single-cell analysis of living cell cultures without compromising cell behavior.

When watching a time-lapse movie of a thriving cell population, it becomes evident that cellular interactions and individual cell behavior are much more elaborate and heterogeneous than we currently appreciate.

Live cell imaging promises to help us understand the contribution of individual cell behavior to the overall response of a cell population.

The HoloMonitor live cell imaging microscope allow individual cells to be non-invasively visualized and quantified over time on a population level.

Live-cell imaging enables studying dynamic cellular processes that cannot be visualized in fixed-cell assays.

The Live Cell Imaging Predicament

Living mammalian cells are as translucent as ice cubes in water. To be visible in a standard or fluorescent light microscope, cells must, therefore, be stained or genetically modified to absorb, emit or scatter light. Unfortunately, the invasive preparations necessary to make cells visible are likely to affect cellular behavior, compromising the in vivo relevance of in vitro live cell observations.

Water glass with ice cubes

Gentle Cell Imaging

Unstained cells do, however, slow down and distort the light passing through them, just like beach waves are distorted by shallower water (below). By using a phase contrast microscope these phase-shift distortions created by living cells can be observed, making unstained cells clearly visible.

Phase shifted beach waves, demonstrating the principle of phase imaging

Phase-shift distorted beach waves, created as a result of the lower wave speed in shallower water.

Just like water waves, light waves of a specific wavelength have two principal charac­ter­istics: amplitude and phase. Amplitude corre­sponds to light intensity and is the height of the wave, measured from crest to trough. Phase describes whether a wave is currently at its crest, in its trough, or some­where in between.

Illustration of phase-shifted waves

When light passes through a cell submerged in cell media, the light amplitude is unaffected. But, the more optically dense cell slows down and delays the light slightly relative to the surrounding ambient light, creating the phase-shift which makes cells visible in a phase contrast microscope.

However, conven­­tional phase contrast micro­scopy cannot quantify phase-shifts, only visualize them.

Quantitative Phase Imaging

Using a digital image sensor, low power diode illumination and sophisticated computer algorithms, the HoloMonitor live cell imager has the ability to both quan­tify and visualize phase-shifts. HoloMonitor employs a tech­nique called quantitative phase imaging (QPI) or quanti­tative phase contrast microscopy, to distinguish it from its soon 100-year-old non-quantitative predecessor — the phase contrast microscope.

Gentle Time-Lapse Imaging

As the cell does not absorb any light energy, the cells are completely unaffected when observed using HoloMonitor — no energy exchange, no change. This allows HoloMonitor to gently acquire time-lapse image sequences over extended periods of time without compromising cellular behavior.

HoloMonitor provides both quantitative and beautiful time-lapse images of living cells, transforming phase micro­scopy and label-free live cell imaging into a quantitative tool for detailed analysis of living cells on a population and single-cell level.

A range of label-free imaging applications allow essential cellular characteristics to be quantified over time in a single in vitro experiment:

  • cell morphology,
  • cell proliferation,
  • cell motility and migration,
  • cell invasion,
  • cell differen­ti­a­tion,
  • cell cycle phase and other cellular events.

As the analysis leaves the cells completely unaffected, the sample may be reanalyzed using comple­mentary instrumentation, such as confocal fluorescence microscopy and other more invasive methods.

Monica Hellesvik, Hanne Øye & Henriette Aksnes, Exploiting the potential of commercial digital holographic microscopy by combining it with 3D matrix cell culture assays, Scientific Reports (2020)

See also the blog piece A LOCKDOWN EXPERIENCE — Research from home, commenting the above work.

Live cell imaging, 3D, quantitative phase imaging, Jimt-1 cells

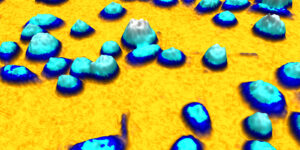

An example of a quantitative phase image of living cells in 3D, created by HoloMonitor. The height of the cell and its color tone corre­spond to the optical thick­ness of the cell.

live cell imaging, time-lapse imaging, wound healing assay

Time-lapse image sequence created when using the HoloMonitor Wound Healing Assay.
